What are the different types of heat exchangers commonly used in engineering machinery?
In engineering machinery, various types of heat exchangers are commonly used to regulate temperatures, cool fluids, and manage thermal energy in different components and systems. Here are some of the most common types of heat exchangers:
Shell-and-Tube Heat Exchangers: This type of heat exchanger consists of a bundle of tubes enclosed within a cylindrical shell. One fluid flows through the tubes (the tube side), while the other fluid flows over the outside of the tubes (the shell side). Shell-and-tube heat exchangers are versatile and widely used in engineering machinery due to their robustness and effectiveness in handling high pressures and temperature differentials.
Plate Heat Exchangers: Plate heat exchangers utilize a series of corrugated metal plates to facilitate heat transfer between two fluids. The plates are arranged in alternating layers, with fluid channels formed between them. Plate heat exchangers offer high heat transfer efficiency, compact design, and easy maintenance, making them suitable for applications with space constraints or varying flow rates.
Finned-Tube Heat Exchangers: Finned-tube heat exchangers consist of a series of tubes with fins attached to their outer surface. The fins increase the heat transfer surface area, allowing for improved heat exchange efficiency. Finned-tube heat exchangers are commonly used in applications where air is the cooling medium, such as radiators in construction machinery or HVAC systems in industrial equipment.
Brazed-Plate Heat Exchangers: Brazed-plate heat exchangers are constructed from multiple thin metal plates stacked and brazed together to form fluid channels. The brazing process creates a strong, leak-proof bond between the plates. Brazed-plate heat exchangers offer high heat transfer coefficients, compact size, and resistance to high pressures and temperatures, making them suitable for demanding engineering machinery applications.
Air-to-Air Heat Exchangers (Heat Recovery Ventilators): Air-to-air heat exchangers, also known as heat recovery ventilators (HRVs) or energy recovery ventilators (ERVs), transfer heat between incoming and outgoing airstreams in ventilation systems. They help recover energy from exhaust air to preheat or precool incoming fresh air, improving energy efficiency and indoor air quality in machinery cabins or enclosed spaces.
Oil Coolers: Oil coolers are specialized heat exchangers designed to cool hydraulic fluids, lubricating oils, or transmission fluids in machinery systems. They typically consist of finned-tube bundles immersed in a coolant (e.g., air or water) to dissipate heat generated during operation, preventing fluid overheating and maintaining system performance.
Radiators: Radiators are heat exchangers used for dissipating heat from engine coolant in internal combustion engines, such as those found in construction equipment, agricultural machinery, or industrial vehicles. They typically consist of a series of tubes connected to metal fins, which facilitate heat transfer to the surrounding air through convection.
These are some of the common types of
engineering machinery heat exchangers , each offering unique advantages and suitability for specific applications based on factors such as space constraints, operating conditions, and heat transfer requirements.
What are the safety considerations associated with heat exchangers in engineering machinery?
Pressure Safety: Heat exchangers in engineering machinery often operate under high pressures, especially in hydraulic systems. Adequate pressure relief devices, such as relief valves or rupture discs, should be installed to prevent overpressurization and potential equipment failure, which could lead to leaks, ruptures, or explosions.
Temperature Safety: Heat exchangers can handle fluids at high temperatures, posing burn hazards to personnel if proper precautions are not taken. Thermal insulation and protective barriers should be installed to prevent accidental contact with hot surfaces. Additionally, temperature sensors and alarms can be used to monitor and control fluid temperatures within safe limits.
Fluid Compatibility: Heat exchangers may come into contact with various fluids, including hydraulic fluids, lubricating oils, coolants, and process fluids. It is essential to ensure that the materials of construction are compatible with the fluids being processed to prevent corrosion, chemical reactions, or contamination. Material compatibility charts and compatibility testing can help assess the suitability of heat exchanger materials for specific fluids.
Leak Prevention: Fluid leaks from heat exchangers can pose safety hazards, including slip and fall risks, environmental contamination, and fire hazards if the leaked fluid is flammable. Regular inspection, maintenance, and testing of heat exchangers can help detect and prevent leaks. Additionally, secondary containment systems and leak detection sensors can provide an additional layer of protection against leaks.

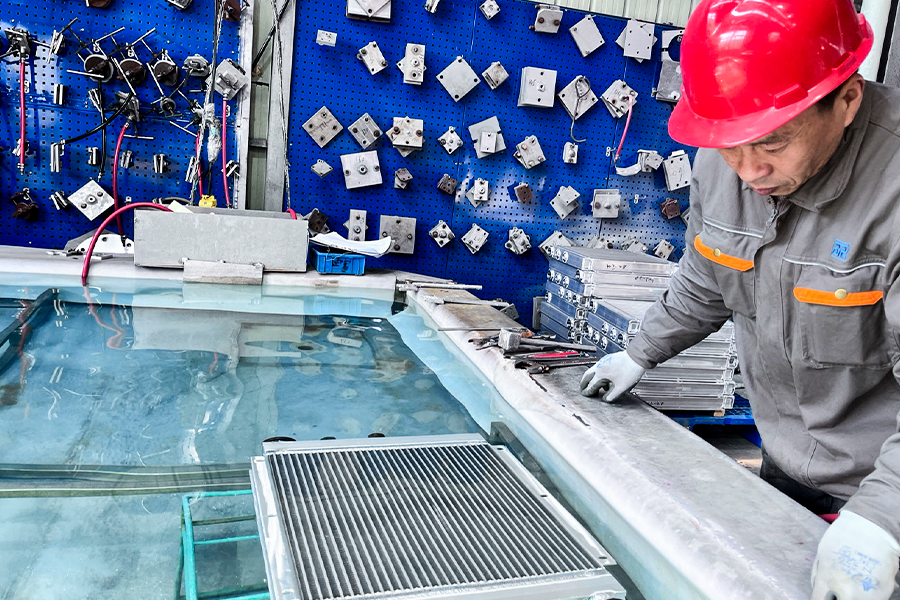

Pressure Testing and Inspection: Heat exchangers should undergo periodic pressure testing and inspection to ensure their integrity and reliability. Pressure testing helps identify potential leaks, weaknesses, or defects in the heat exchanger's construction. Routine inspections can also detect corrosion, erosion, fouling, or other issues that may compromise safety or performance.
Proper Installation and Maintenance: Heat exchangers should be installed, operated, and maintained according to manufacturer recommendations and industry best practices. Proper installation ensures correct alignment, support, and connection of the heat exchanger to the machinery system. Regular maintenance, including cleaning, lubrication, and component replacement, helps prevent malfunctions and extends equipment lifespan.
Emergency Response Planning: In the event of a heat exchanger malfunction, leak, or other safety incident, it is essential to have a well-defined emergency response plan in place. This plan should outline procedures for safely shutting down equipment, evacuating personnel, containing spills, and notifying appropriate authorities. Training and drills should be conducted regularly to ensure personnel are prepared to respond effectively to emergencies.
Compliance with Regulations: Heat exchangers used in engineering machinery must comply with relevant safety regulations, standards, and codes, such as those established by occupational safety agencies (e.g., OSHA) and industry organizations (e.g., ASME, API). Ensuring compliance with these regulations helps mitigate safety risks and legal liabilities associated with heat exchanger operations.
By addressing these safety considerations, stakeholders can help ensure the safe and reliable operation of heat exchangers in engineering machinery, minimizing risks to personnel, equipment, and the environment.
